Product Details:
|
| Product Name: | Hydronic Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Engineering Plastic Materials | Heating Circuits: | 2-12 |
| Primary Connection: | G 1" | Maximum Tempeature Resistance: | 75 Degree C |
| Maximum Working Pressure: | 5 Bar | Zone: | 5 Zones |
| High Light: | underfloor heating manifold mixing valve,6 port underfloor heating manifold,11 port underfloor heating manifold |
||

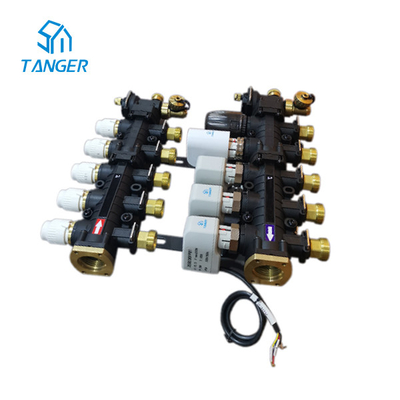

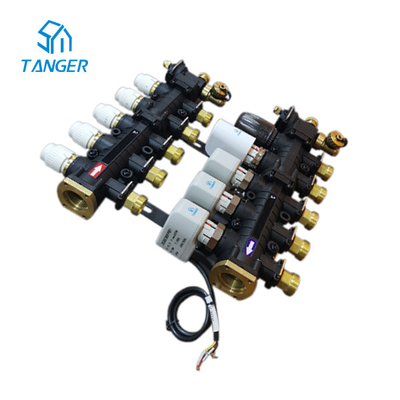

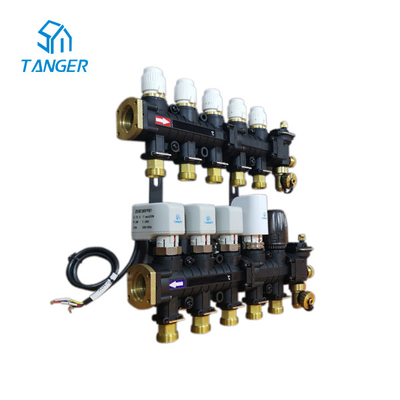

Multi Zone Mixing Manifolds Underfloor Heating Manifold (UFH) With Electric Thermal Actuator
Product Description
The hydronic underfloor heating manifolds is a vital component of any underfloor heating system, allowing you to maintain temperature and water flow. If underfloor heating is to be installed across multiple floors, we recommend installing a separate manifold on each floor. Generally, underfloor heating systems will run at temperatures ranging from 34℃ to 50℃. If the boiler or heat source cannot supply the water at the required temperature, either thermostatic or actuated blending controls can be supplied.
An underfloor heating system is much more economical and efficient in comparison with other home heating systems and it can even increase the resale value of your property.
How does underfloor heating systems work?
Underfloor heating and cooling is a form of central heating and cooling that achieves indoor climate control for thermal comfort using dydronic or electrical heating elements embedded in a floor. Heating is achieved by conduction, radiation and convection.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring centre, electric thermal actuators, water pump, etc)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |
The manifolds come with many components that accumulate together to provide its superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap
Temperature display bar
Mounting bracket
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
