Product Details:
|
| Product Name: | Hydronic Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Engineering Plastic Materials | Heating Circuits: | 2-12 |
| Primary Connection: | G 1" | Maximum Tempeature Resistance: | 75 Degree C |
| Maximum Working Pressure: | 5 Bar | Zone: | 4 Zones |
| High Light: | 12 port underfloor heating manifold,10 port underfloor heating manifold,8 port underfloor heating manifold |
||

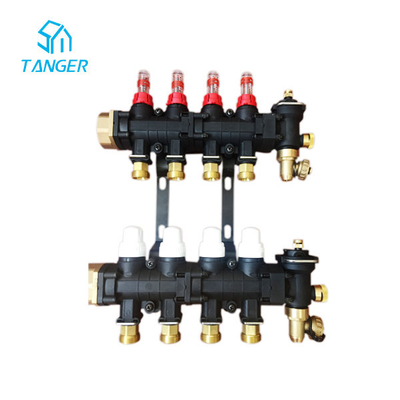

Manifolds and Actuators for Hydronic Underfloor Heating (UFH) 2-12 Ports Engineering Plastic Materials
Product Description
Underfloor heating manifolds are a key part of hydronic underfloor heating system, they connect the underfloor heating pipework to the heat source and act as the termination point for these circuits. Manifolds are responsible for circulating heated water from the boiler or other heating source through the underfloor circuits whilst controlling the pressure, flow-rates and if using a mixing unit, controlling the circuit temperature, too.
How does underfloor heating systems work?
Underfloor heating and cooling is a form of central heating and cooling that achieves indoor climate control for thermal comfort using dydronic or electrical heating elements embedded in a floor. Heating is achieved by conduction, radiation and convection.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring centre, electric thermal actuators, water pump, etc)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |
The manifolds come with many components that accumulate together to provide its superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap
Temperature display bar
Mounting bracket
