Product Details:
|
| Product Name: | Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Glass Fiber Reinforced Polyamide | Heating Circuits: | 2-12 |
| Primary Connection: | G 1" | Color: | Black |
| Construction: | Segment | Warranty: | 1 Year |
| Maximum Tempeature Resistance: | 75 Degree C | Maximum Working Pressure: | 5 Bar |
| High Light: | underfloor heating plastic manifold,Underfloor Heating Manifold 2-12 Branches,heating manifold underfloor |
||

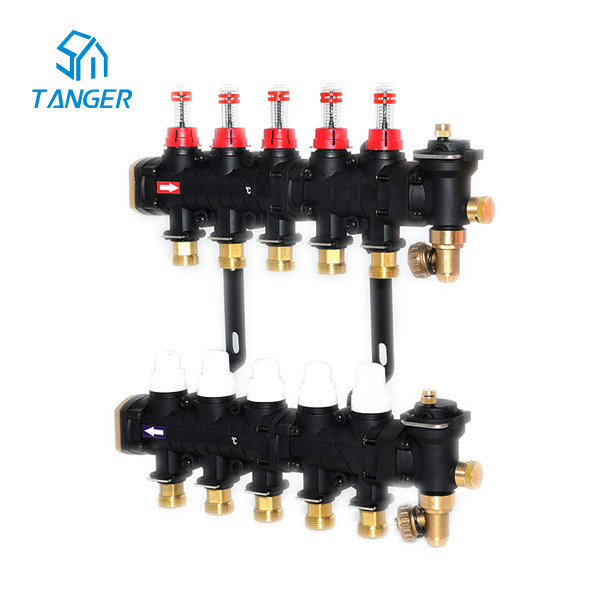

2-12 Branches G1" Underfloor Heating (UFH) Plastic Manifold
Product Description
MFA series underfloor heating (UFH) manifolds
An underfloor heating manifold is a system that distributes warm water to each UFH zone. They connect the underfloor heating pipework to the heat source, feeding water at the correct temperature from either the boiler or from the heat pump, directing it to each UFH tube at the correct flow rate.
How do underfloor heating systems work?
Underfloor heating and cooling is a form of central heating and cooling that achieves indoor climate control for thermal comfort using hydronic or electrical heating elements embedded in a floor. Heating is achieved by conduction, radiation, and convection.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring center, electric thermal actuators, water pump, etc.)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |

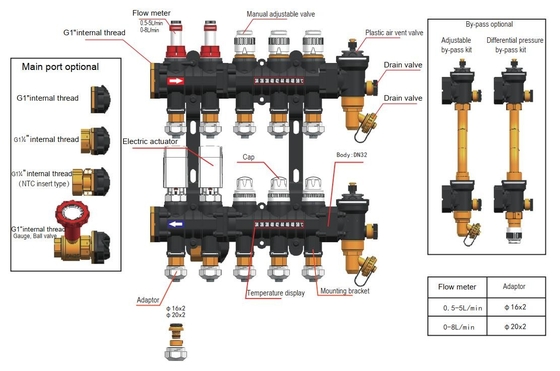

The manifolds come with many components that accumulate together to provide their superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap

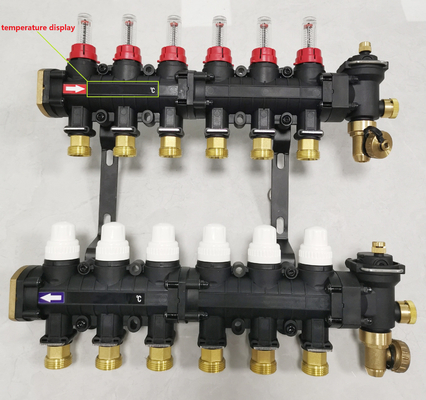

Temperature display bar
Mounting bracket
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
|
Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
|
Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
