Product Details:
|
| Product Name: | Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Glass Fiber Reinforced Polyamide | Primary Connection: | G 1" |
| Number Of Outlets: | 6 | Manifold Compatibility: | EP Truflow |
| Construction: | Segment | Warranty: | 1 Year |
| Maximum Tempeature Resistance: | 75 Degree C | Advantage: | With Visual Flow Meters |
| High Light: | heating manifold radiant,heating manifold flow meter,heating manifold actuator |
||

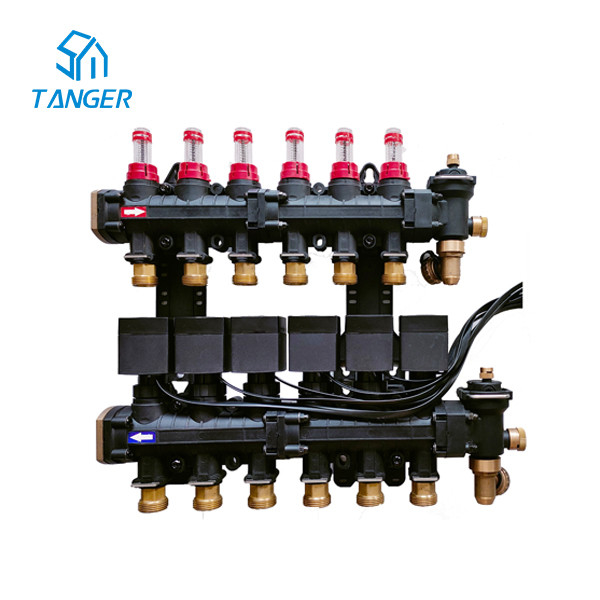

6-Branches EP Radiant Heating Manifolds Assembly With Flow Meters And Electric Actuators
Product Description
MFA series underfloor heating (UFH) manifolds are applied to all various cooling system, flooring, roof and wall. Special engineer material can bear high and low temperature with anti-corrosion, good flexibility, aging and deformation resistance. Flow meter can be installed on tubes. The backwater tube can be connected with the temperature difference control valve and electric actuator which is available to control water flow. EPDM seal constant connection is adopted by connection of main pipe and accessories. The end of assembly contains two-way exhaust valve and water injection valve, the automatic exhaust valve core is easy to be removed. The cleaning supervisor is equipped with a LCD temperature bar to dispaly the actual tempeature.
How does underfloor heating systems work?
Underfloor heating and cooling is a form of central heating and cooling that achieves indoor climate control for thermal comfort using dydronic or electrical heating elements embedded in a floor. Heating is achieved by conduction, radiation and convection.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring centre, electric thermal actuators, water pump, etc)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |
The manifolds come with many components that accumulate together to provide its superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap
Temperature display bar
Mounting bracket
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
