Product Details:
|
| Product Name: | Underfloor Heating (UFH) Manifolds | Application: | HVAC Controls |
|---|---|---|---|
| Material: | Glass Fiber Reinforced Polyamide | Primary Connection: | G 1" |
| Heating Circuits: | 2-12 | Color: | Black |
| Construction: | Segment | Warranty: | 1 Year |
| Advantage: | Simple Installation, Long Life | Operating Temperature: | 20-60 Degree C |
| High Light: | 3 port underfloor heating manifold,4 port underfloor heating manifold,5 port underfloor heating manifold |
||

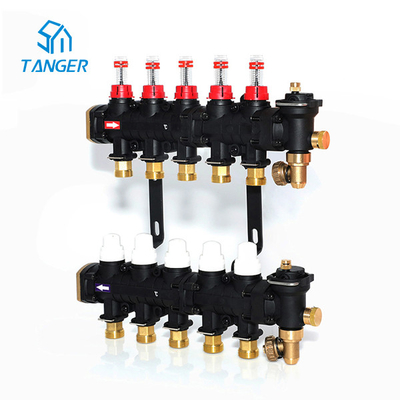

2-12 Ports Underfloor Heating (UFH) Manifolds
Product Description
MFA series underfloor heating (UFH) manifold connects the heat source-boiler, heat-pump or other-with the water underfloor heating circuits, regulates the incoming water temperature via the mixing unit and distribute this warm water throughout the floor circuits for an energy-efficient heating system. Once successfully installed and the pipework connections made, the underfloor heating circuits are initially filled and purged with water.
The wiring centre controls the electrical aspect of an underfloor heating system and facilitates a connection between the manifold and its components with the heat source and thermostat. Typically connected to the actuators and thermostats, the wiring centre coordinates the operation of the heating system.
(Underfloor heating system consists of underfloor heating manifolds, underfloor heating wiring centre, electric thermal actuators, water pump, etc)
| Interface thread | G 1” |
| Main tube diameter | 37mm |
| Distance between main tubes | 210mm |
| Distance between branch pipe spacing | 50mm |
| Max. pressure difference | 1 bar |
| Max. working pressure | 5 bar |
| Max. testing pressure | 6 bar |
| Maximum exhaust pressure | 6 bar |
| Operating temperature | 2~60℃ |
| Maximum temperature resistance | 75℃ |
| Flowmeter | 0~5L/min |
| Medium | water, 30% glycol |
| Temperature sensing label range | 34~50℃ |
| Tributary flow | Kvs 1.0 m3/h |
| Main flow | Kvs 5 m3/h |
The manifolds come with many components that accumulate together to provide its superior function. The manifold consists of:
Air vent and drain valve
Adaptors
Flow meters
Protection cap
Temperature display bar
Mounting bracket
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
