Product Details:
|
| Product Name: | Underfloor Heating Manifolds Flow Meter | Type: | Underfloor Heating Parts |
|---|---|---|---|
| Connection: | G1/2" | Materials: | Brass |
| Seals: | EPDM | Maxium Torque: | 20Nm |
| High Light: | underfloor heating flow meters,underfloor heating flow regulator,underfloor heating manifold flow meter/regulator |
||

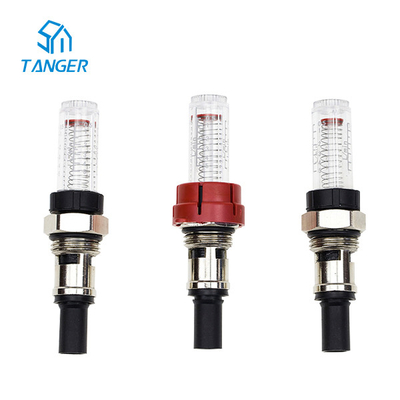

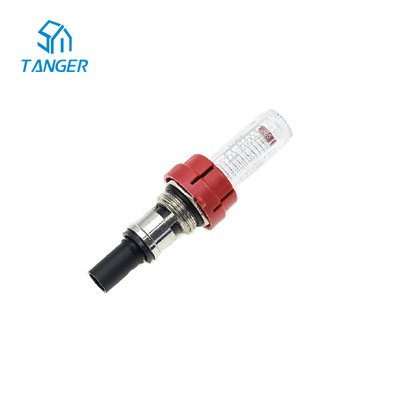

G1/2" Nickel Plated Brass Underfloor Heating Manifolds Flow Meter Regulator UFH System Supply Circuit
G1/2" Nickel Plated Brass Underfloor Heating Manifolds Flow Meter Regulator UFH System
Underfloor heating manifolds all come standard with balancing valves and flow meters. These components are fixed to the supply side of the manifold and are used to balance and correct the flow of water or water/glycol mix through the manifold.
It is designed to control the flow rate for different rooms. It is installed on underfloor heating manifold for heating system.
It is ok to have GPM version.
Specifications
| Thread connection | G1/2" |
| Material | Brass |
| Flow range | 0.5-5L /min |
| Maximum operating pressure | 1.0MPa |
| Maximum cut off pressure | 0.6MPa |
| Connection | DN15 |
| Temperature | -10 to 70 degrees |
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focus on thermostats and temperature controls in HVAC market for over 30 years. |
|
Q2: How is your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM serive. We have own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are ususally ready in 5-20 days based on different types. |
|
Q5: What is the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are special cases, we will discuss it. |
