Product Details:
|
| Product Name: | Snap-on Thermal Actuator | Application: | Underfloor Heating |
|---|---|---|---|
| Stroke/Lift: | 4mm/5mm | Protection Class: | IP54 |
| Connection Size: | M30*1.5 | Material: | PC |
| Warranty: | 3 Years | Advantage: | Fast Connection With Adaptor |
| Highlight: | thermal actuator element,Snap on Electric thermal actuator,thermal actuator replacement |
||

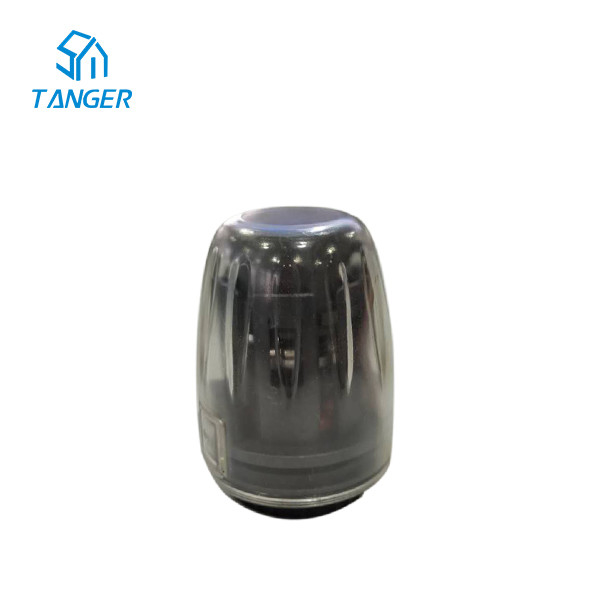

Electric Thermal Actuator ZRE230/24B01
Product Description:
Thermal electric actuator, it is for remote control of system flow, heat (cold) device, suitable for underfloor heating, radiator, and the temperature control of the central air conditioner and the room temperature control.
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. Adaptor for snap-on fast connection.
6. Superior reliability with long service life expected.
7. Available as a normally closed (NC) or normally open (NO) version.
Specifications:
| Model | ZRE230/24B01 |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 4mm/5mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |
| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Optional |
