Product Details:
|
| Product Name: | Thermal Valve Actuator | Application: | Underfloor Heating |
|---|---|---|---|
| Stroke/Lift: | 4mm/5mm | Protection Class: | IP54 |
| Connection Size: | M30*1.5 | Material: | PC |
| Warranty: | 3 Years | ||
| High Light: | thermoelectric actuator,thermal actuator,actuator valve underfloor heating |
||

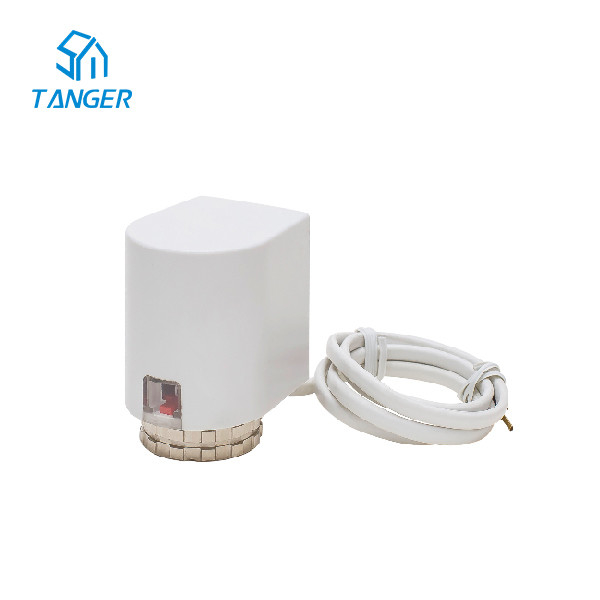

Electric Thermal Actuator DR-16B
Product Description:
Electric thermal valve actuators are used for opening and closing valves and small valves on heating circuit distributors of surface heating and cooling systems. The predominent area of application is the enery efficient room-by-room temperature control in the area of building services and automation. The thermal actuator is installed on the radiator thermostatic control valve, two-way and three-way valve, ball valve, zone valves, balance valves and underfloor heating manifolds. It applied to radiator, underfloor heating system, and air conditioning systems.
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. Superior reliability with long service life expected.

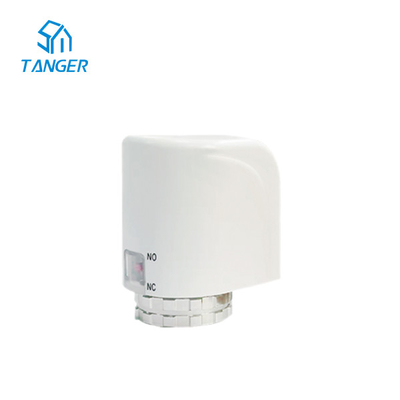

6. Available as a normally closed (NC) or normally open (NO) version.
Specifications:
| Model | DR-16B |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 4mm/5mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |
| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Normally closed(NC) |
