Product Details:
|
| Product Name: | M30*1.5 Electric Thermal Actuator | Application: | Underfloor Heating |
|---|---|---|---|
| Stroke/Lift: | 4mm/5mm | Protection Class: | IP54 |
| Connection Size: | M30*1.5 | Material: | PC |
| Warranty: | 3 Years | ||
| High Light: | m28x1.5 thermal actuator,thermal actuator for bluefin manifolds,M28x1.5 Electric Thermal Actuator |
||

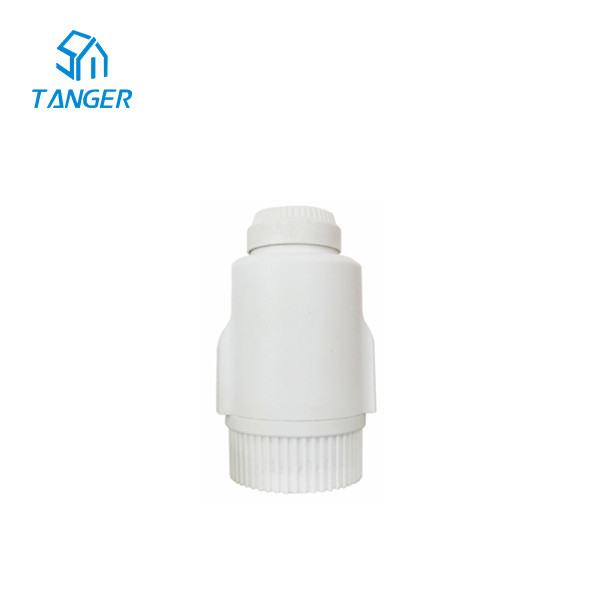

Electric Thermal Actuator ZRB230/24A01
Product Description:
Electric thermal actuators are used for opening and closing valves and small valves on heating circuit distributors of surface heating and cooling systems. The predominent area of application is the enery efficient room-by-room temperature control in the area of building services and automation.
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. Superior reliability with long service life expected.
Specifications:
| Model | ZRB230/24A01 |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 4mm/5mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |
| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Normally closed(NC) |
