Product Details:
|
| Product Name: | Long Stroke Thermal Actuator | Application: | Underfloor Heating |
|---|---|---|---|
| Stroke/Lift: | 4mm/5mm/7mm | Protection Class: | IP54 |
| Connection Size: | M30*1.5 | Material: | PC |
| Warranty: | 3 Years | ||
| High Light: | Long Stroke Electric Thermals Actuators 7mm,thermal actuators devices 7mm,Electrics thermals actuators 7mm |
||

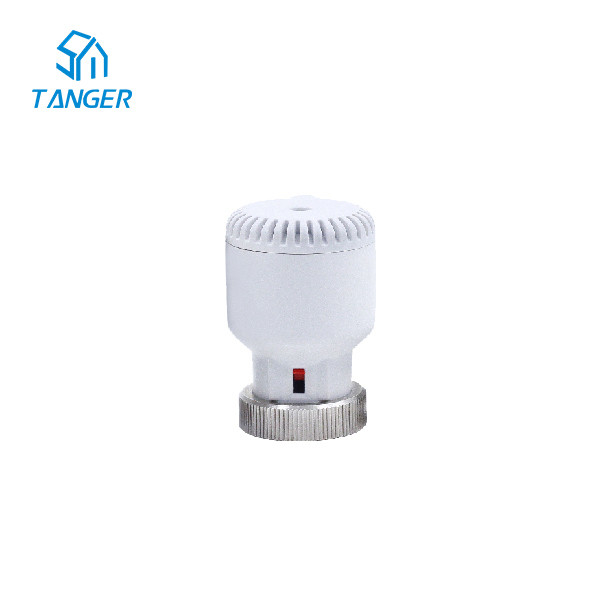

Electric Thermal Actuator DR-13
Product Description:
Electric Thermal Actuator, it is for remote control of system flow, heat (cold) device, suitable for underfloor heating, radiator, and the temperature control of the central air conditioner and the room temperature control.
Electrothermal actuators are mainly used in underfloor heating systems to control the closing and opening of pipes through the manifolds valves. It is specifically used in the electric drive part of the electrothermal actuator of the manifold branch valve, small valve and dynamic balance valve. The working operation is noise-free, and the nut connection and installation method is simple, quick to install, and easy to disassemble.
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. Longer stroke available with 5mm or 7mm.
6. Superior reliability with long service life expected.
7. Available as a normally closed (NC) or normally open (NO) version.
Specifications:
| Model | DR-13 |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 4mm/5mm/7mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |
| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Optional |
