Product Details:
|
| Product Name: | Lockshield Valves | Application: | Radiators Or Towel Warmers |
|---|---|---|---|
| Primary Material: | Brass | Size: | 1/2" |
| Flow Capacity: | 1.7 | Valve Type: | Shut-off |
| Connection: | Male+Female Thread | Medium: | Water |
| Power: | Manual | Warranty: | 2 Years |
| High Light: | straight trv radiator valves,trv straight radiator valves,straight through radiator valves |
||
Product Description

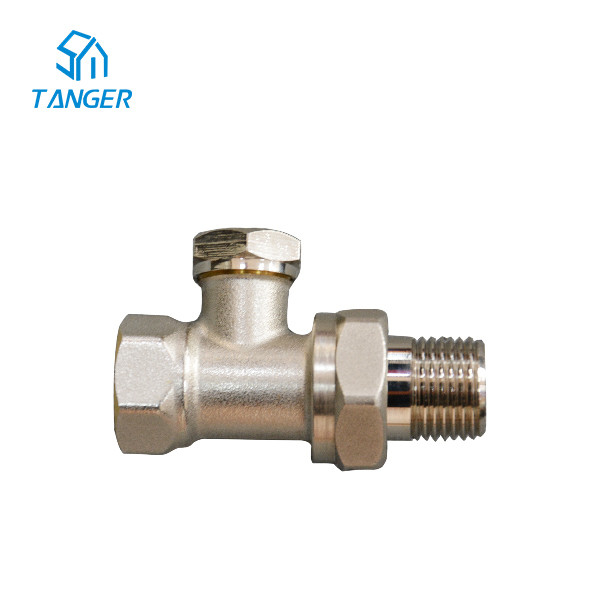

Lockshield Valves Straight For Hydronic Radiator and Towel Warmers DN15-BC2
This lockshield valve is used to connect radiators and other heat exchangers to heating circuits of hydronic heating systems. They are installed at the return port of the radiator and offer a shutoff function to separate the radiator from the heating circuit.
Straight or angle: If the piping is coming from the floor or from a side wall use straight valves; if the piping is coming out the same wall that the radiator is on, use angle valves.
Features
Technical Specifications
| Model number | DN15-AC |
| Size | 1/2" |
| Maximum static pressure | 10bar |
| Maximum differential pressure | 1 bar |
| Temperature resistance | 5-100°C |
| Kvs | 1.7 |
More types of thermostatic radiator valves
Model | Size | Description | Maximum static pressure | Maximum differential pressure | Temperature resistance | Kvs | Remark |
| DN15-A2 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.3 | |
| DN15-B2 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | UK market |
| DN15-B3 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 2.0 | UK market |
| DN15-B4 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-AC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC3 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | chrome |
| DN15-BC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | chrome, UK market |
| DN15-AC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.14 | chrome,UK market |
| DN20-A2 | 3/4" | Straight | 10bar | 1bar | 5-100°C | 2.2 | |
| DN20-B2 | 3/4" | Angle | 10bar | 1bar | 5-100°C | ||
| DN20-AC | 3/4" | Lockshield | 10bar | 1bar | 5-100°C | 2.4 | |
| DN20-BC2 | 3/4" | Lockshield | 10bar | 1bar | 5-100°C |
