Product Details:
|
| Product Name: | Radiator Valves | Application: | Radiators |
|---|---|---|---|
| Material: | Brass | Type: | Floor Heating Parts |
| Size: | 1/2" | Flow Capacity: | 1.5 |
| Valve Type: | Angle | Connection: | Male+Female Thread |
| Medium: | Water | Power: | Manual |
| High Light: | 15mm angled radiator valves,10mm angled radiator valves,15mm angled trv |
||
Product Description

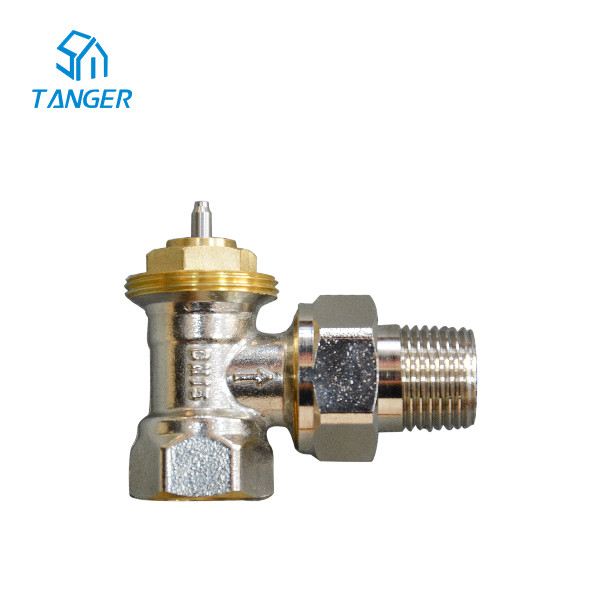

15mm Angled Thermostatic Radiator Valve DN15-B2 is an angled valve for manual or automatic regulation of heating medium flow through the heating device. The latter case usually has a thermostatic head controlled using an inside temperature sensing element. This valve with thermostatic heads enables you to automatically maintain the set temperature.
Features
Technical Specifications
| Model number | DN15-B2 |
| Size | 1/2" |
| Maximum static pressure | 10bar |
| Maximum differential pressure | 1 bar |
| Temperature resistance | 5-100°C |
| Flow capacity | 1.5 |
Below are more types of thermostatic radiator valves.
|
Model |
Size | Description | Maximum static pressure | Maximum differential pressure | Temperature resistance | Kvs | Remark |
| DN15-A2 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.3 | |
| DN15-B2 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | UK market |
| DN15-B3 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 2.0 | UK market |
| DN15-B4 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-BC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | Chrome, UK market |
| DN15-BC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC3 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | Chrome |
| DN15-AC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-AC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.14 | chrome, UK market |
| DN20-A2 | 3/4" | Straight | 10bar | 1bar | 5-100°C | 2.2 | |
| DN20-B2 | 3/4" | Angle | 10bar | 1bar | 5-100°C | ||
| DN20-AC | 3/4" | Lockshield | 10bar | 1bar | 5-100°C | 2.4 | |
| DN20-BC2 | 3/4" | Lockshield | 10bar | 1bar | 5-100°C |
