Product Details:
|
| Product Name: | Radiator Valves | Application: | Radiators |
|---|---|---|---|
| Flow Capacity: | 2.0 | Type: | Floor Heating Parts |
| Size: | 1/2" | Valve Type: | Angle |
| Color: | Nickel Plated | Medium: | Water |
| Power: | Manual | Maximum Static Pressure: | 10bar |
| High Light: | brushed radiator valves,nickel trv,chrome angled trv |
||
Product Description

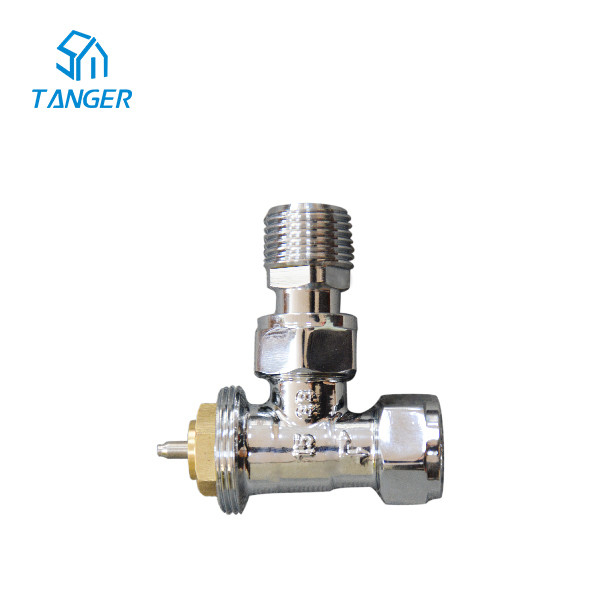

Nickel Plated Angled Radiator Valves for Britain Market 15mm x1/2"
Radiator valves work by regulating the level of hot water passing through the radiators in your central heating system. The valve acts as the control in varying degrees depending on the valve you use.
Residential applications
Two-pipe water heating system
Technical Specifications
| Model number | DN15-B3 |
| Size | 1/2" |
| Maximum static pressure | 10bar |
| Maximum differential pressure | 1 bar |
| Temperature resistance | 5-100°C |
| Kvs | 2.0 |
More types of thermostatic radiator valves
Model | Size | Description | Maximum static pressure | Maximum differential pressure | Temperature resistance | Kvs | Remark |
| DN15-A2 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.3 | |
| DN15-B2 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | UK market |
| DN15-B3 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 2.0 | UK market |
| DN15-B4 | 1/2" | Angle | 10bar | 1bar | 5-100°C | 1.5 | |
| DN15-AC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.7 | |
| DN15-BC3 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | |
| DN15-A3 | 1/2" | Straight | 10bar | 1bar | 5-100°C | 0.9 | chrome |
| DN15-BC | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.63 | chrome, UK market |
| DN15-AC2 | 1/2" | Lockshield | 10bar | 1bar | 5-100°C | 1.14 | chrome,UK market |
| DN20-A2 | 3/4" | Straight | 10bar | 1bar | 5-100°C | 2.2 | |
| DN20-B2 | 3/4" | Angle | 10bar | 1bar | 5-100°C | ||
| DN20-AC | 3/4" | Lockshield | 10bar | 1bar | 5-100°C | 2.4 | |
| DN20-BC2 | 3/4" | Lockshield | 10bar | 1bar | 5-100°C |
Why us?
FAQ
| Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
