Product Details:
|
| Product Name: | Draft Regulator | Application: | Boiler |
|---|---|---|---|
| Adjustment Knob: | Reinforced Plastic | Heat Sensitive Element: | Vernet Wax Element |
| Setting Temperature Range: | 30-90 Degree C | Connection Size: | G 3/4" |
| Installation Direction: | Horizontal Or Vertical | Maximum Water Temperature: | 120 Degree C |
| Color: | Red | Usage: | Boiler Temperature Control |
| High Light: | ISO9001 Draft Regulators Valves,Drafts Regulators Valves ISO9001,boiler temps controls ISO9001 |
||
Draught Draft Regulator Valve for Solid Fuel Boiler BR-01
Draught Regulator for Solid Fuel Hot Water Boiler Draft
The draught regulators for solid fuel boilers is used to control the output of the solid fuel boiler. The regulator adjusts the boiler draft by changing the supply air flow rate.
As the water temperature rises, the controller lowers the chain and closes the flap, reducing the supply air.
By supplying the right amount of air, the combustion process is controlled, a constant water temperature is achieved, avoiding overheating and excessive fuel consumption.
Features
Technical Specifications
| Model number | BR-01 |
| Usage | Solid fuel boiler |
| Heat sensitive element | Wax element/sensor |
| Setting range | 30-90 degree C |
| Stroke/extension | 90mm |
| Permissible sensor temperature | 115 degree C |
| Chain length | 1200mm |
| Chain load | 300-600g |
| Connection | G3/4" |

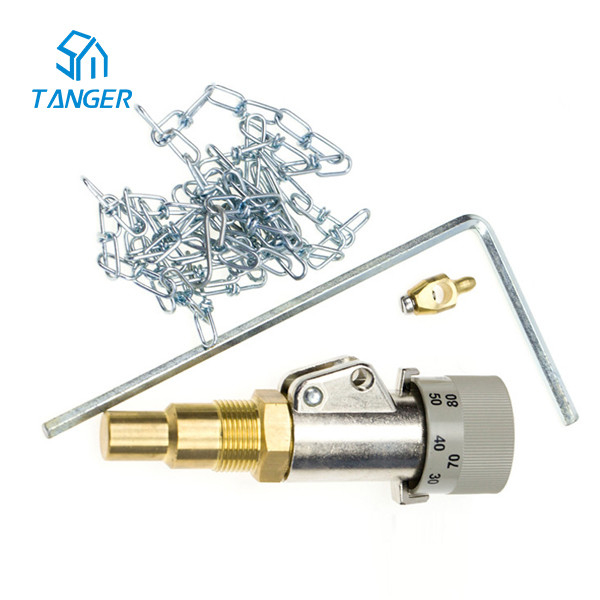

The draft regualtor consists of:
Housing
Adjuster knob
Immersion pocket
Lever rod
Chain
Wax element/sensor
Retur spring
The Draught Regulator controls combustion by adjusting the supply of air to a boiler.The intergral thermostat measures the temperature in the
heat generator and in relationship to the temperature regulates a lever with chain linkage to control the air inlet to the solid fuel boiler by opening
or closing the air flap. It can be installed on the boiler either in horizontal or in vertical.
