Product Details:
|
| Product Name: | Draft Regulator | Application: | Boiler |
|---|---|---|---|
| Adjustment Knob: | Reinforced Plastic | Heat Sensitive Element: | Vernet Wax Element |
| Setting Temperature Range: | 30-90 Degree C | Connection Size: | G 3/4" |
| Installation Direction: | Horizontal Or Vertical | Maximum Water Temperature: | 120 Degree C |
| Color: | Red | Usage: | Boiler Temperature Control |
| High Light: | boiler water temperature control,3/4 Draft Brass Regulator Valve,Brass Regulator Valve 120 Degree |
||
Product Description
Draught Regulator for Solid Fuel Hot Water Boiler Draft opens and closes the air intake flap of solid fuel boilers in proportion to the flow temperature.
Draft regulator for heating boiler, with the replaceable thermostatic wax element.
Features
Technical Specifications
| Model number | BR-01B |
| Usage | Solid fuel boiler |
| Heat sensitive element | Wax element/sensor |
| Setting range | 30-90 degree C |
| Stroke/extension | 90mm |
| Permissible sensor temperature | 115 degree C |
| Chain length | 1200mm |
| Chain load | 300-600g |
| Connection | G3/4" |

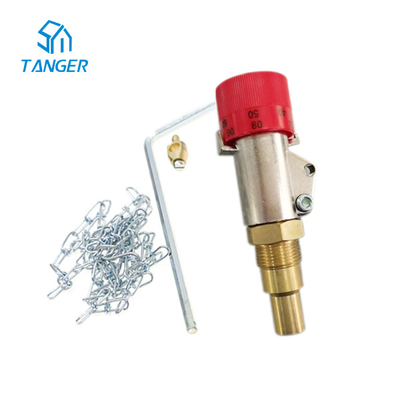

The draft regulator consists of:
Housing
Adjuster knob
Immersion pocket
Lever rod
Chain
Wax element/sensor
Return spring
The Draught Regulator controls combustion by adjusting the air supply to a boiler. The integral thermostat measures the temperature in the
heat generator and, in relationship to the temperature, regulates a lever with chain linkage to control the air inlet to the solid fuel boiler by opening
or closing the air flap. It can be installed on the boiler, either horizontal or vertical.
