Product Details:
|
| Product Name: | Thermostatic Valve Head With Spiral Immersion Sensor TF-42G | Type: | Floor Heating Thermostats, Floor/ Under Floor Heating System |
|---|---|---|---|
| Application: | Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System | Valve Type: | Straight Thermostatic Valve |
| Housing Material: | Plastic | Color: | White Or Customized |
| Standard: | ISO9001 Certified | Warranty: | 2 Years |
| High Light: | thermostatic control head,thermostatic electric head,trv thermostatic head |
||
Product Description

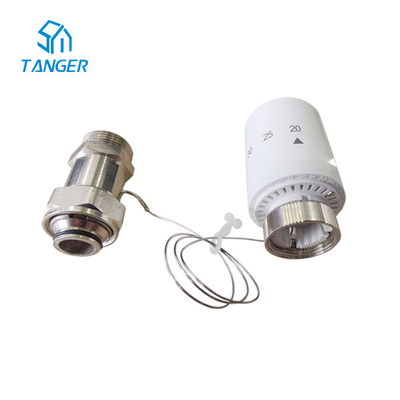

Long Distance Temperature Control from 20 to 60 Degrees Thermostatic Heads With Remote Sensor TF-42G's sensor and the connected valve seat are integrated designs that are easy to install and have high-temperature sensitivity.
Technical Specifications
| Model | TF-42G |
| Temperature range | 20~60 ℃ |
| Maximum static pressure | 1.0 MPa |
| Maximum differential pressure | 0.1 MPa |
| Maximum temperature resistance | 80 ℃ |
| Installation size | M30x1.5 |
| Brass nut size | G3/4" |
| Hysteresis | <0.8 K |
| Capillary length | 500mm |
Installation and Application
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
