Product Details:
|
Product Name: | Chrome Plated Thermostatic Radiator Valve Head TF-11 | Type: | Floor Heating Thermostats, Floor/ Under Floor Heating System |
---|---|---|---|
Application: | Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System | Valve Type: | Angle Or Straight Thermostatic Valves |
Housing Material: | Chrome | Color: | White Or Customized |
Mounting: | Thread Direct Mount | Standard: | ISO9001 Certified |
Pipe Connection: | 15mm | Warranty: | 2 Years |
High Light: | ISO9001 chrome radiators thermostatic head,ISO9001 15mm chrome thermostatic radiators valve head,ISO9001 chrome thermostatic radiators valve head 15mm |
Product Description

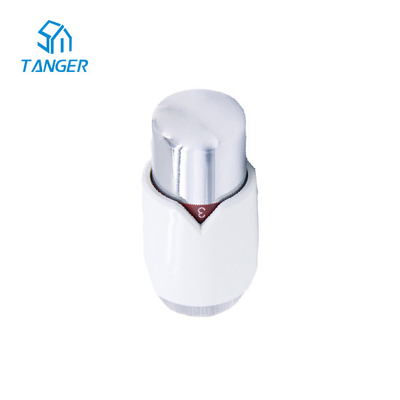

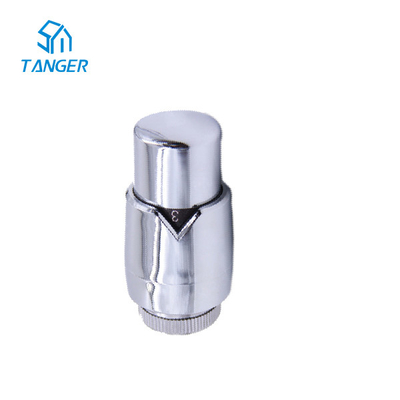

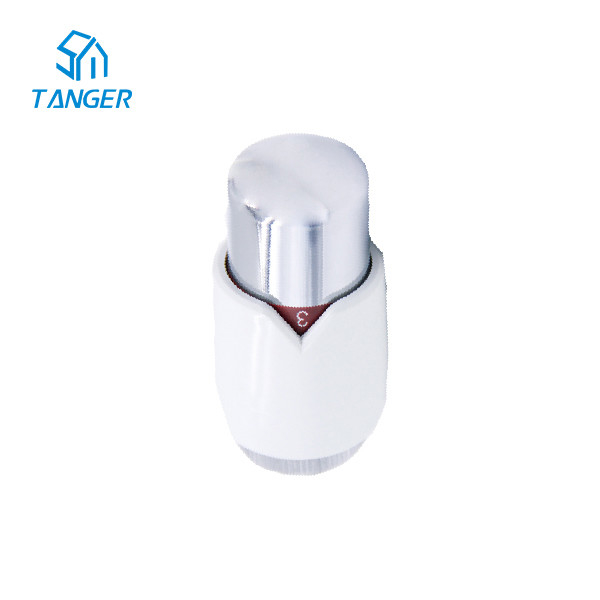

The Chrome Plated Thermostatic Radiator Valve Head TF-11/ TF-11D
A thermostatic radiator valve (TRV) is a device fitted to your radiator pipework that will individually control the temperature in the room by setting the heat output of the radiator it’s attached to. And they don’t use any electricity either!
It is a nonelectrical, mechanical device that controls flow based on ambient room temperature. As the room warms up, the TRV starts slowing down the flow, and when the room cools down, the TRV allows the flow to increase.
Features
Customizable regulating closing dimension
Technical Specifications
Model | TF-11 | TF-11D |
Temperature range |
6-28 ℃ |
6-28 ℃ |
Color | White+ chrome plated | Chrome plated |
Maximum static pressure | 1.0MPa | 1.0MPa |
Maximum differential pressure | 0.1MPa | 0.1MPa |
Installation size | M30x1.5 | M30x1.5 |
Hysteresis | 0.4 K | 0.4 K |
Why us?
FAQ
Q1: Are you a manufacturer or a trader? A1: We are a thermostat manufacturer, focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
