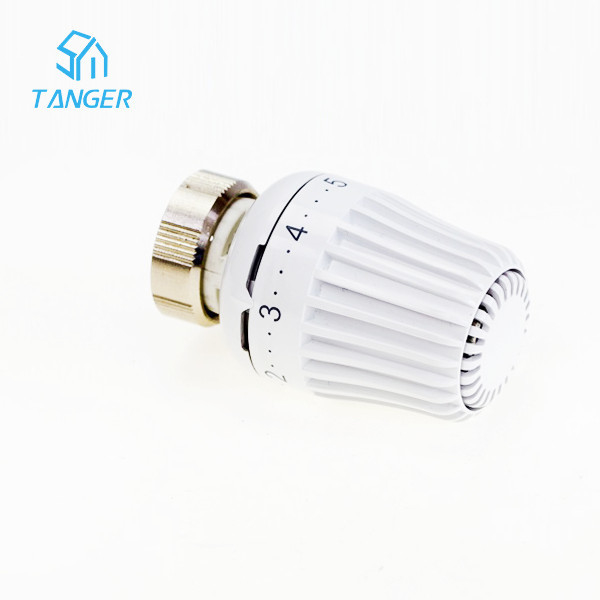

Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size

Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size
Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size

Large Image :  Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: TANGER
Certification: ISO9001
Model Number: TFA01A01
Payment & Shipping Terms:
Minimum Order Quantity: 1,000 pcs
Packaging Details: Cartons, Pallets
Delivery Time: 30 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 150,000 pcs/month

Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size

Description
Product Name: Thermostatic Radiator Valve Head TF-9 Floor Heating System Type: Floor Heating Thermostats, Floor/ Under Floor Heating System
Application: Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System Valve Type: Angled Or Straight Thermostatic Valve
Color: White Or Customized Standard: ISO9001 Certified
Housing Material: Anti UV Material Warranty: 2 Years
High Light:

underfloor heating thermostatic head M30x1.5

,

thermostatic head radiator M30x1.5

,

thermostatic head for underfloor heating



Production Descriptions



The Threaded Direct Mount Thermostatic Radiator Valve Head



The thermostatic head TFA01A01  is used to control the temperature of individual rooms using, for example, heaters, convectors, and radiators. It combines high precision control with attractive looks.



The working principle of this design of valve head: The liquid temperature sensing element in model TFA01A01  thermostatic valve head can feel the indoor air temperature, thereby changing the heating water flow to regulate and control room temperature. When the indoor temperature rises, the thermal expansion of the temperature sensing element shall compress to the valve stem to close the valve up to shut up. On the contrary, the branch shall rebound to open up the valve. In this way, we achieved a more comfortable temperature environment for people.



Features​

  • Reduced size in length and diameter
  • Easy to use and simple installation
  • The replaceable temperature sensing element
  • Temperature limited



Technical Specifications



Model number

TFA01A01
Temperature Range

2~28 ℃

Maximum Static Pressure 1.0 MPa
Maximum Differential Pressure 0.1 MPa
Maximum Temperature Resistance 50 ℃
Installation Size M30x1.5
Hysteresis 0.4K
Lock-on or Not On





Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size 0



More radiator valve heads for your selection.



Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size 1



Why us?

  • A more substantial production capacity: The production area is 27,000 square meters.
  • Industrial and packaging designers: Provide OEM and ODM services and help many international companies to develop new products.
  • Professional technical team: Mechanical and Electrical engineers support before and after-sales.
  • Various detailed products: There are more than 1,000 articles in our product catalog.
  • Face-to-face communication: We will attend many professional exhibitions yearly, such as AHR America, ISH Frankfurt, MCE Milano, ISK-SODEX, etc.
  • A solid management system: We have ISO 9001 and factory audit approval from home and abroad.
  • Mold and injection molding ability: We have 15 machines, ten continuous die stamping machines, and four circuit board placement machines.

Underfloor Heating Thermostatic Head Radiator M30x1.5 Small Size 2

FAQ

Q1: Are you a manufacturer or a trader?

A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years.

Q2: How are your product quality and warranty?

A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period.

Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give?

A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products.

Q4: How long can I get the sample?

A4: Samples are usually ready in 5-20 days based on different types.

Q5: What are the nearest ports of shipment?

A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them.
