Product Details:
|
| Product Name: | Factory Direct Shipping Thermostatic Radiator Valve Head With Remote Sensor TF-13 And TF-13C | Type: | Floor Heating Thermostats, Floor/ Under Floor Heating System |
|---|---|---|---|
| Application: | Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System | Valve Type: | Straight Thermostatic Valve |
| Housing Material: | Plastic | Color: | White Or Customized |
| Standard: | ISO9001 Certified | Warranty: | 2 Years |
| High Light: | m30x1.5 mm thermostatic radiator valve,thermostatic head with liquid sensor,thermostatic valve heads for radiators |
||
Product Description
The thermostatic head has a particular principle of the device. Additions and manufacturer-specific features characterize some models. But the concept of them is similar.

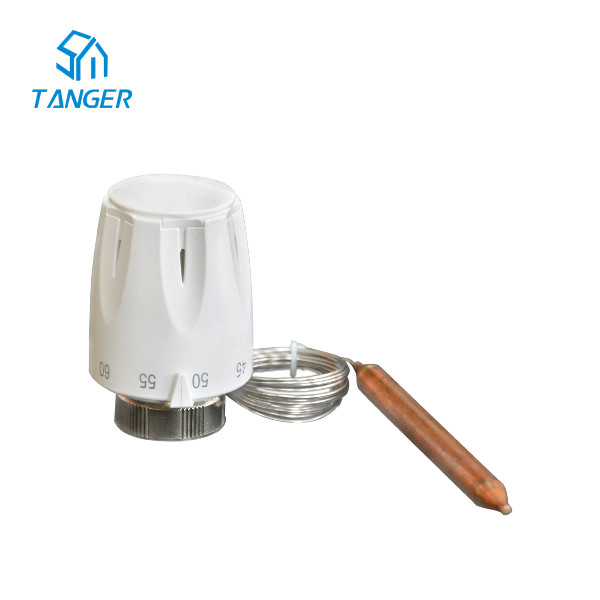

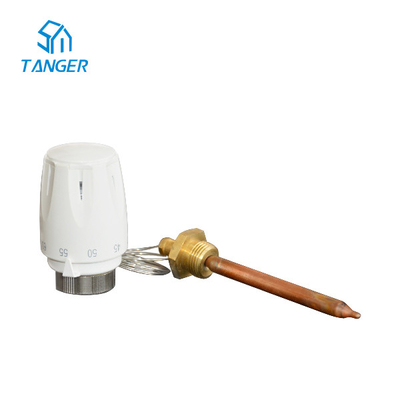

Thermostatic Head with Remote Sensor TF-13 and TF-13C controls the heating unit and reads room temperature further away from the radiator. It consists of a valve and the head of the thermostat itself. Inside the latter is a sealed corrugated chamber, and it is called a bellows. This chamber is filled with a unique substance that, when heated, expands in a certain way.
The system starts to press on the valve stem, which blocks the coolant's flow. As the material inside the bellows, liquid, gas, or solid can be used. By the type of such filler, the device's speed of response to ambient temperature changes depends on this.
Features
Customizable capillary tube length
Technical Specifications
| Model number | TF-7A | TF-13 | TF-13C | TF-14 | TF-16 | TF-17 | TF-37 | TF-38 |
| Temperature range | 20-60 ℃ | 20-60 ℃ | 20-60 ℃ | 30-70 ℃ | 20-60 ℃ | 30-70 ℃ | 50-80 ℃ | 40-70 ℃ |
| Maximum static pressure | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa |
| Maximum differential pressure | 0.1 MPa | 0.1 MPa | 0.1 MPa | 0.1 MPa | 0.1 MPa | 0.1 MPa | 0.1 MPa | 0.1 MPa |
| Installation size | M30x1.5 | M30x1.5 | M30x1.5 | M30x1.5 | M30x1.5 | M30x1.5 | M30x1.5 | M30x1.5 |
| Bulb Length | Φ9.5x110mm | Φ9.5x110mm | Φ9.5x110mm | Φ9.5x110mm | Φ9.5x110mm | Φ9.5x110mm | ||
| Capillary Length | 2000mm | 2000mm | 1000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Remarks | Thermal bulb ø9.5x110mm | Match small differential pressure 2-way reversing valve DN15-FXFT | ||||||
Below is the picture of the other thermostatic valve heads with remote sensors.
Below is the picture of the application of the thermostatic valve head with a remote sensor.
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
