Product Details:
|
| Product Name: | Radiator Valve Head Temperature Liquid Sensor | Application: | Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System |
|---|---|---|---|
| Type: | Floor Heating Thermostats, Floor/ Under Floor Heating System | Housing Material: | Iron |
| Standard: | ISO9001 Certified | Warranty: | 2 Years |
| High Light: | Thermostatic Temperature Sensor,Trv Valve Head Iron Housing,TANGER Thermostatic Radiator Head Temperature |
||

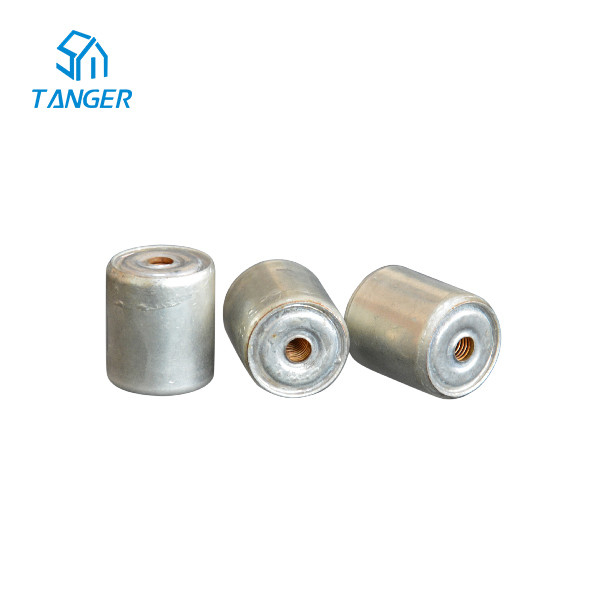

Thermostatic Temperature Sensor TMS-04
TMS-04 liquid thermostatic sensors are specially designed for being used in thermostatic radiator valves. It's small in size and lightweight, and easy to install.
Compatible with most Thermostatic Radiator Heads
Technical Specifications
| Model number | TMS-04 |
| Working range | 5°C-30 °C with a load of 50N |
| Extension | 0.22±0.11mm/°C |
| Workload | 40/80N |
| Minimum workload | 40N |
| Maximum workload | 120N |
| Min/max. temperature | -25°C to 55 °C |
| Hysteresis/K | <0.12 |
| Total expansion | 4.84±0.22mm between 6-28 °C with a load of 50N |
| "X" | X=6.5±0.2mm |
| Total expansion | 2.2±0.11mm between 15-25°C with a load of 50N |
Liquid sensors can not work independently and are usually installed in radiator thermostatic valve heads.
|
