Remote Control Thermostatic Valve Head trv sensing head

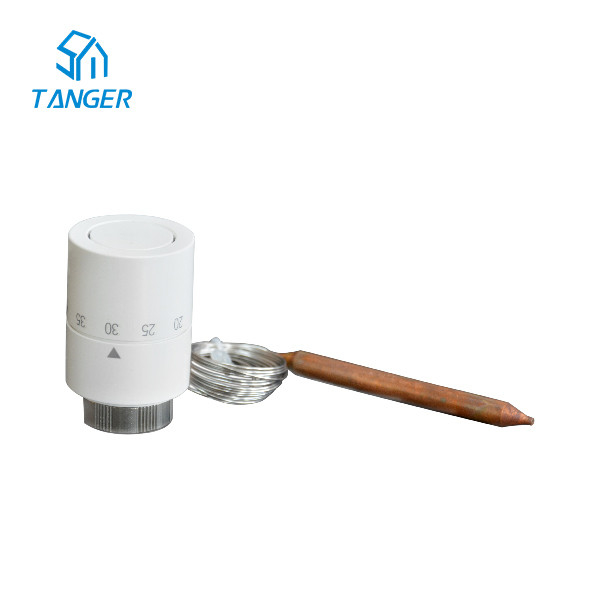

Large Image : Remote Control Thermostatic Valve Head trv sensing head

Product Details:

Place of Origin:	Wuxi, Jiangsu, China
Brand Name:	TANGER
Certification:	ISO9001
Model Number:	TF-42

Payment & Shipping Terms:

Minimum Order Quantity:	1,000 pcs
Packaging Details:	Cartons, pallet
Delivery Time:	50-60 days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	150,000 pcs/month

Contact Now

Remote Control Thermostatic Valve Head trv sensing head

Description

Product Name:	Priority Shipping Remote Control Type Thermostatic Valve Head TF-42	Type:	Floor Heating Thermostats, Floor/ Under Floor Heating System
Application:	Radiator, HVAC, Floor/ Underfloor Heating, Boiler System, Piping System, Water Mixing System	Valve Type:	Straight Thermostatic Valve
Housing Material:	Plastic	Color:	White Or Customized
Standard:	ISO9001 Certified	Warranty:	2 Years
Highlight:	Remote Control Thermostatic Valve Head , Thermostatic Valve Head trv sensin , trv thermostatic heads

Remote Control Thermostatic Valve Head

Product Description

Remote Control Type Thermostatic Valve Head TF-42 is used to reduce the cost of heating. It uses the device's scale to set the desired room temperature. The thermostat completely blocks the coolant's flow when the radiator pushes it to the specified level. As soon as the temperature decreases, the feed resumes. This is very convenient and cost-effective from an economic point of view.

Features

Customizable capillary tube length
Remote distance sensing
Fast response time

Technical Specifications

Model	TF-42
Temperature range	20-60 ℃
Maximum static pressure	1.0 MPa
Maximum differential pressure	0.1 MPa
Maximum temperature resistance	80 ℃
Installation size	M30x1.5
Hysteresis	0.4 K
Thermal bulb	Φ9.5x110mm
Capillary length	1000mm/ 2000mm

Below is the picture of the application of the thermostatic valve head with a remote sensor.

Remote Control Thermostatic Valve Head trv sensing head 0

Remote Control Thermostatic Valve Head trv sensing head 1

FAQ

Q1: Are you a manufacturer or a trader?
A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years.

Q2: How are your product quality and warranty?
A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period.

Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give?
A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products.

Q4: How long can I get the sample?
A4: Samples are usually ready in 5-20 days based on different types.

Q5: What are the nearest ports of shipment?
A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them.
