Product Details:
|
| Product Name: | Electric Drive Linear Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Valve Size: | DN65 To DN125 | Thrust Range: | 1000-2500N |
| Housing Material: | Plastic | Running Speed: | 0.2mm/s (adjustable) |
| Warranty: | 1 Year | Pushing Torque: | 2500Nm |

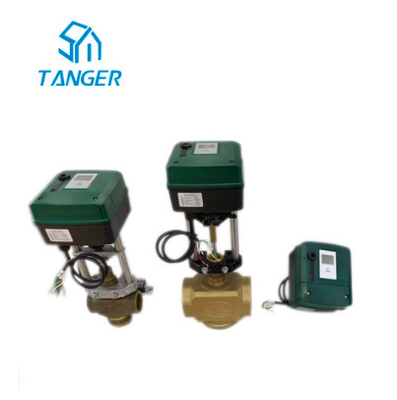

Electric Drive Linear Actuator 24V DC Regulator Electric Control Valve Actuator Ac 2500N
Product Description
We always stand at the forefront of the industry, constantly carry out technological innovation of products, according to customer requirements, R&D and production to meet the needs of different customers, we have been committed to high standards to carry out the company's business, we are willing to establish a mutually beneficial long-term partnership with you to grow together, we share the concept of comfortable, healthy, energy-saving and high-quality products and win-win with you.
Technical Specifications
| Actuator model number | ZED24FP03-2500 |
| Function | Adjustment with feedback |
| Power supply | 24V AC/DC |
| Frequency | 50/60Hz |
| Power consumption | 7W for running, 1W for holding |
| Running speed | 0.2mm/s (adjustable) |
| Maximum thrust | 2500N |
| Maximum stroke | 65mm |
| Protection level | IP54 |
| Housing material | Flame retardant engineering plastics |
| Bracket material | Stainless steel |
| Base material | Stainless steel and power alloys |
Wiring Diagram
Installation Guild
Before any service work on the final controlling device is carried out, it is essential to isolate the electric actuator from the power supply (by unplugging the electrical cable if necessary). Any pumps in the part of the piping system must also be switched off and the appropriate slide valves closed (allow all components to cool down first if necessary and consistently reduce the system pressure to ambient pressure level).
The system must not be returned to service until the ball valve and the rotary actuator have been correctly reassembled following the instructions, and the pipeline has been refilled by professionally trained personnel.
FAQ
Q1:Are you manufacturer or trading company?
A: We are manufacturer, all of our products are produced by ourselves. We also supply product for trading companies. We can offer you the factory price. We have our professional sales team.we have rich experience in export.
Q2: Can you do design for us ?
A: OEM or ODM service is available, we can design product and package based on customer's requirment.
Q3: What should I do if I can not find what I am looking for on your website?
A: Please feel free to contact us via email or by phone directly and send detailed information for the product you want. We will check it and reply to you asap.
Q4: Do you test all your goods before delivery?
A:Yes , we have 100% test before delivery.
Q5: What about lead time for mass production?
A: Honestly, it depends on the quantity of the order, also the season of the production is the important fact of it .
Generally speaking, the lead time is about 4~8 weeks after your down payment, so we suggest that you start inquiry as earlier as possible.
Q6: What is your payment terms?
A: For small quantities, 100% T/T in advance .
For larger quanities, 30% T/T in advance, the balance before shipment or againest the B/L copy.
100% L/C at sight.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12months warranty to our products.
Q8: How to deal with the faulty?
A: We will of course try our best to provide you 100% satification, however, if you have any questions about products, please contact us immediately. We will send you the part for your replacement, or we can discuss together for a good solution.
