Product Details:
|
| Product Name: | Electric Drive Linear Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Motor Type: | Stepper Motor | Valve Type: | 2-way |
| Valve Connection: | PN16 | Stroke: | 5 |
| High Light: | Stepper motor HVAC Valve Actuator,Motorized HVAC Valve Actuator,Electric Drive Linear Actuator |
||
Product Description

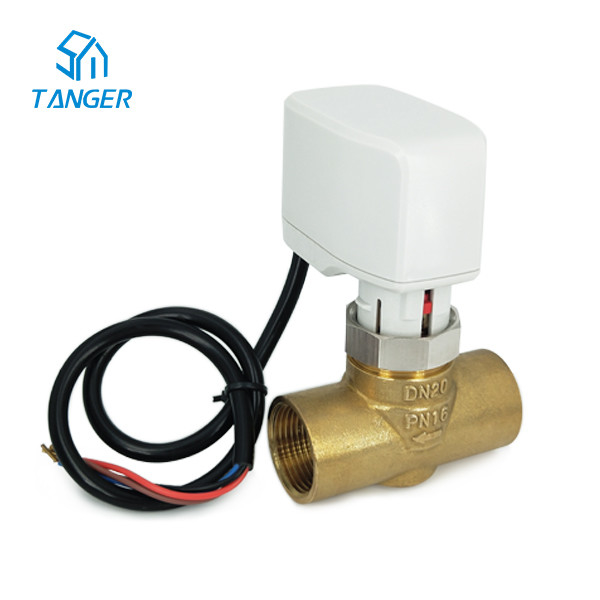

Electric Drive Linear Electric HVAC Valve Actuator ZEB230DP
A temperature difference electric actuator is a brushless motor-driven intelligent control actuator. It is mainly used for fan coil water supply and return temperature control, PID control function to ensure the real-time, speed, and stability of regulation. Suppose the temperature difference does not reach the set temperature. In that case, the actuator can adjust the opening of the actuator stepless according to the size of the temperature difference and ensure the constant temperature difference between supply and return water—the Temperature difference setting range from 2 to10℃.
Technical Specifications
| Actuator model number | ZEB230DP |
| Type | Temperature difference type |
| Power supply | 230V AC, 24V AC/DC |
| Frequency | 50/60Hz |
| Power consumption | 3W for running, 0.5W for maintain |
| Max. thrust force | 100N (max. 150N) |
| Stroke | 4mm, 5mm, 6mm |
| Protection level | IP54 |
| Temperature difference setting | 2 to 10 degrees, adjustable |
| Sensor size | ø4.5x40mm, black PVC 1M |
| Cable specifications | 2x0.75mm2, white PVC 0.5M |
Wiring Diagram
Below are the type of valves to be used for actuators.
| Valve type | Thread | Coefficient Kvs | Valve body pressure MPa | Closing differential pressure MPa | Medium | Medium temperature |
| VB10I20A | 3/4" | 5.0 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
| VB12I20A | 3/4" | 4.5 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
