Product Details:
|
| Product Name: | Electric Drive Linear Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Motor Type: | Stepper Motor | Maximum Thrust: | 180N |
| Protection Level: | IP54 | Signal: | 0-10VDC |
| High Light: | IP54 Electric Linear Valve Actuator,180N Electric Linear Valve Actuator,Air Conditioner linear actuator 24 volt |
||
Production Description

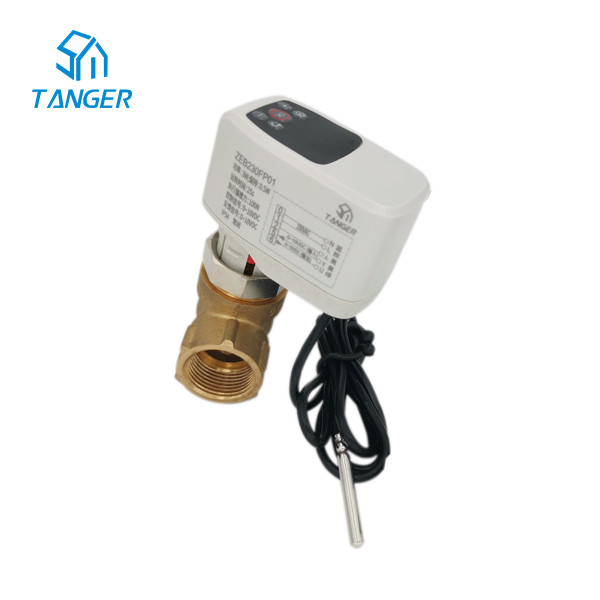

HVAC Valve Actuator ZEB230W
The temperature-controlled actuator is an intelligent control actuator driven by a brushless motor. It is mainly used for the temperature control of ground heating and return water systems. The PID control function is adopted to ensure the adjustment's real-time performance, rapidity, and stability. The return water temperature range is 2-45℃ (can be customized). If the return water temperature does not reach the set temperature, the actuator, according to the temperature difference, stepless adjustment of the actuator opening, finally ensures a constant return water temperature.
Technical Specifications
| Actuator model number | ZEB230W |
| Power supply | 230V AC, 24V AC/DC |
| Frequency | 50/60Hz |
| Power consumption | 3W for running, 0.5W for maintain |
| Thrust | 100N (max. 150N) |
| Stroke | 4mm, 5mm, 6mm |
| Protection level | IP54 |
| Water return temperature | 38 degrees as default |
| Sensor size | θ3.5x30 |
| Ambient temperature | -20 to 50 degrees |
Below are the type of valves to be used for actuators.
| Valve type | Thread | Coefficient Kvs | Valve body pressure MPa | Closing differential pressure MPa | Medium | Medium temperature |
| VB10I20A | 3/4" | 5.0 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
| VB12I20A | 3/4" | 4.5 | 1.0 | 0.4 | Cold/warm water, 50% glycol | -20°C to 95°C |
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
