Product Details:
|
| Product Name: | Room Thermostats | Application: | Air Conditioning, Heating, Cooling, HVAC Systems, Ventilation |
|---|---|---|---|
| Color: | White | Material: | Plastic |
| Protection Level: | IP20 | Max. Load: | 10(2.5)A |
| High Light: | digital room thermostat 16A,room thermostat on off,indoor temperature sensor |
||

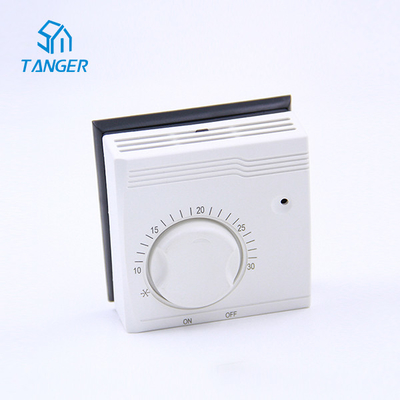

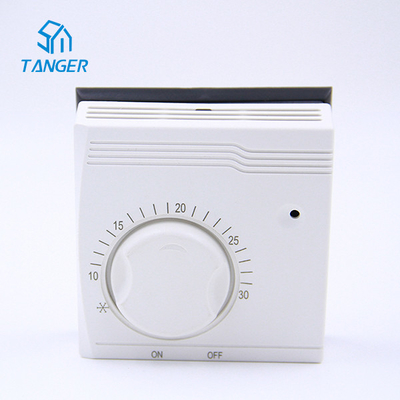

5 Degrees To 30 Degrees 10Amp Resistive Load Room Thermostat Indoor ON-OFF Switch Wall Mount TR-TA4
ROOM THERMOSTAT
Frost thermostat gas-filled bellows operating, SPDT OR SPST contacts, is particularly suitable for commercial premises besides home industrial heating and air conditioning applications.
A practical surface-mounted mechanical thermostat suitable for temperature control in industrial environments, refrigeration and cooling cellars, greenhouses, and electrical panels.
Assembly: The thermostat must be assembled approximately 1.5m from the floor in a zone reflecting the medium room temperature. Avoid installing in zones with air stagnation near the doors, windows, heat sources, etc.
Installation-Remove the cover by releasing the clip. Fix the device to the wall using two screws. Maximum diameter 3.5mm, using the holes (B-B) provided in the base.
N.B. The thermostat is for use on fixed wiring only.
The device is designed to be used internally. If externally applied, ensure that it is enclosed within weatherproof housing.
Features
Technical Specifications
| Model | TR-TA4 |
| Power supply | 250VAC |
| Current | 10(2.5)A |
| Temperature range | 5 to 30℃ |
| Differential | Δt. 0.4K/0.8K |
| Protection class | I |
| Protection level | IP20 |
| Temperature rate of change | 15min./1K |
| Dirty resistance | Normal ambient |
| Number of automatic cycles | 100,000 |
| Mounting | Surface |
Packaging details
Thermostat x1
Mounting plate x1
Screws x4
Instruction x1
