Product Details:
|
| Product Name: | Room Thermostats | Application: | Air Conditioning, Heating, Cooling, HVAC Systems, Ventilation |
|---|---|---|---|
| Color: | White | Material: | Plastic |
| Protection Level: | IP20 | Dimension: | 83*83*38mm |
| Certificate: | CE | Max. Load: | 10(2.5)A |
| High Light: | 250VAC underfloors rooms thermostats,250VAC underfloors rooms thermostat TANGER,rooms air conditioners thermostats |
||

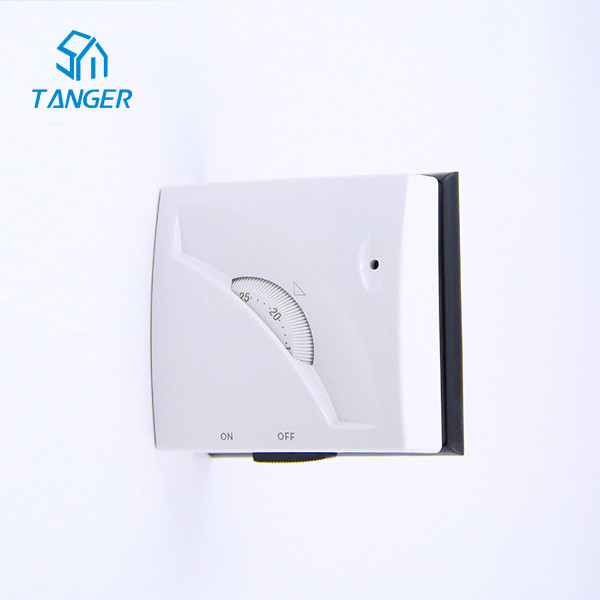

TR-TA3 Room Temperature Controller Air Conditioning Room Thermostat For Hotel
ROOM THERMOSTAT
Room thermostat gas filled bellows operating, SPDT OR SPST contacts, is particularly suitable for commercial premises besides applications in the field of home industrial heating and air conditioning.
Assembly-The thermostat must be assembled at approx 1.5m from the floor, in a zone reflecting the medium room temperature.Avoid the installation in zones where there is air stagnation, near the doors, the windows, heat sources and so on.
Installation-Remove the cover by releasing clip. Fix the device to the wall by means of two screws. Maximum diamter 3.5mm, using the holes (B-B) provided in the base.
N.B. The thermostat is for use on fixed wiring only.
Features
Techcical Specifications
| Model | TR-TA3 |
| Power supply | 250VAC |
| Current | 10(2.5)A |
| Temperature range | 5-30℃ |
| Differential | Δt. 0.4K/0.8K |
| Protection class | I |
| Protection level | IP20 |
| Temperature rate of change | 15min./1K |
| Dirty resistance | Normal ambient |
| Number of automatic cycles | 100,000 |
Packaging details
Thermostatx1
Mounting platex1
Screwsx4
Instructionx1
