Product Details:
|
| Product Code: | WPR-40Z | Product Name: | Cylinder Pipe Thermostats |
|---|---|---|---|
| Scope Of Application: | Air Conditioning, Heating, Cooling, HVAC Systems, Ventilation | Color: | White |
| Material: | Plastic, Beryllium Bronze, Stainless Steel, Red Copper, Brass, Steel, Iron | Certification: | CE |
| Temperature Range: | 0~40℃ | Warranty: | 1 Year |
| High Light: | IP40 Cylinders pipes Thermostats,Cylinders pipe Thermostats IP40,IP40 Cylinders pipe Thermostats |
||

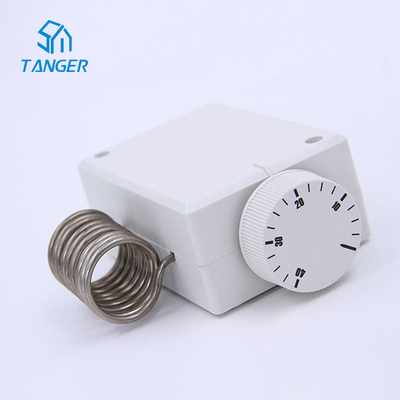

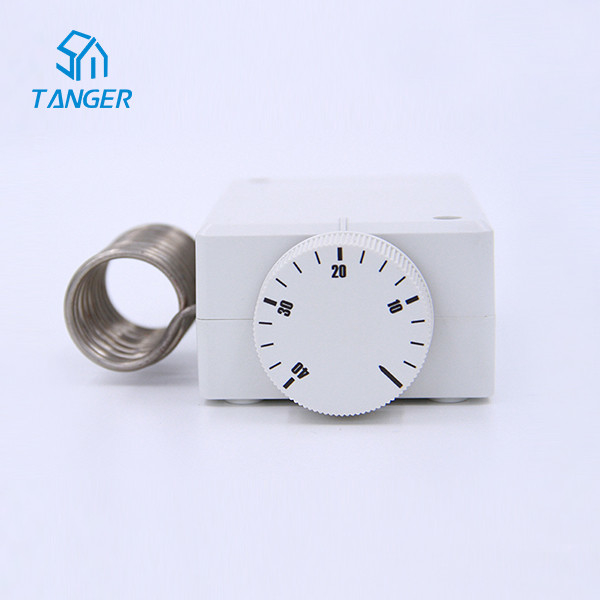

WPR-40Z Spiral Sensor Room Temperature Controller in Greenhouse
This thermostat is customarily installed to control the room temperature up to 40 degrees ℃ on greenhouses, hatchers, etc.
CE approved
one-year warranty
Application: temperature controller, temperature adjusted by a knob.
| Model | WPR-40Z |
| Temperature range | 0~40℃ |
| Voltage | 250V AC |
| Current | 16(4)A |
| Contact form | S.P.S.T |
| Contact resistance | ＜50mΩ |
| Insulation resistance | DC500V, >100mmΩ |
| Insulation withstand voltage | AC 1800V, 1 min |
| Medium | Water |
| Maximum temperature | Main body 80℃, sensing element 60℃ |
| Protection level | IP40 |
| Knob shaft torque | 0.1-1.0Nm |
Overall dimensions in mm
