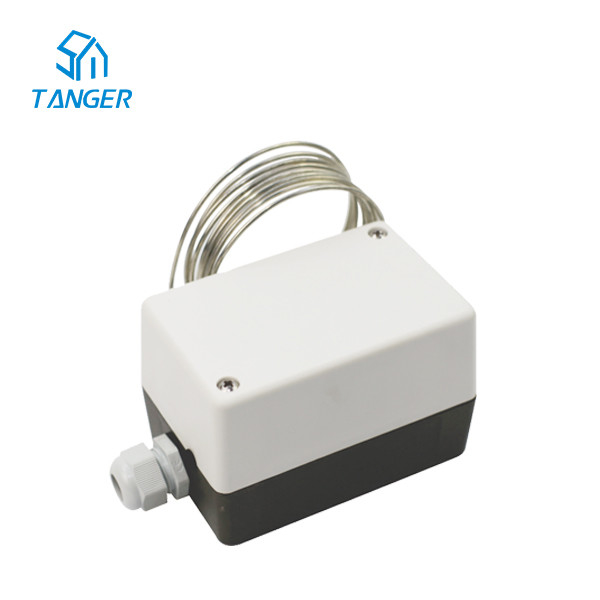

Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm

Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm
Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm

Large Image :  Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm

Product Details:
Place of Origin: Jiangsu,China
Brand Name: TANGER
Certification: CE
Model Number: ST-W
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Delivery Time: 1-5000pcs 40days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 500000pcs per Year
Contact Now

Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm

Description
Product Name: Anti-frost Thermostat Temperature Range: -18℃~+15℃/-15℃~+15℃
Differential Range: 1~5℃ Max. Temperature: 70℃
Capillary Length: 2m~12m Electrical Rating: 16(4)A/250VAC
Warranty: 1 Year
Highlight:

capillary frost thermostat

,

mechanical capillary thermostat

,

capillary thermostats 6000mm

Anti-frost Thermostat  ST-W series



Product Desciption:

Well suited for a number of applications of temperature control or safety cut-out in pipe work systems, calorifiers, duct work systems, green houses and many other installations.





Features:

1. Robust housing.

2. Volt free contacts.

3. Ideal for many applications.





Specifications:

ModelST-W-F18/15AST-W-F18/15A2ST-W-F18/15A3ST-W-F15/15AST-W-F15/15A2ST-W-F15/15A3
Temperature Range-18~15℃-18~15℃-18~15℃-15~15℃-15~15℃-15~15℃
Differential Range1~5℃1~5℃1~5℃1~5℃1~5℃1~5℃
Max. Temperature70℃70℃70℃70℃70℃70℃
Capillary Length2000mm6000mm12000mm3000mm6000mm12000mm
Electrical Rating16(4)A/250VAC16(4)A/250VAC16(4)A/250VAC16(4)A/250VAC16(4)A/250VAC16(4)A/250VAC
Dimension133*70.5*72mm133*70.5*72mm133*70.5*72mm133*70.5*72mm133*70.5*72mm133*70.5*72mm



Anti Frost Mechanical Capillary Thermostats 6000mm 12000mm 0

Tag:

capillary pipe thermostat,

refrigerator thermostat capillary tube,

Capillary Thermostat In Refrigerator
