Product Details:
|
| Product Name: | Flow Switch | Application: | Pipe Thermostats |
|---|---|---|---|
| Power Supply: | 20(6)A/220~250VAC | Max. Admissible Static Pressure: | 1MPa |
| Installation Size: | 1'' | Largest Diameter: | 6'' |
| Temperature Of Liquid: | -20~120℃ | Protection Class: | IP42 |
| Warranty: | 1 Year | ||
| High Light: | heat pump water flow switch,heat pump flow switch,air conditioning Flow Switch |
||

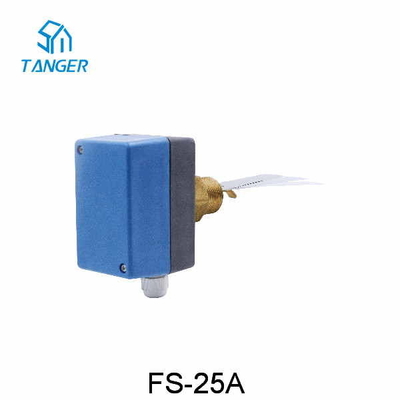

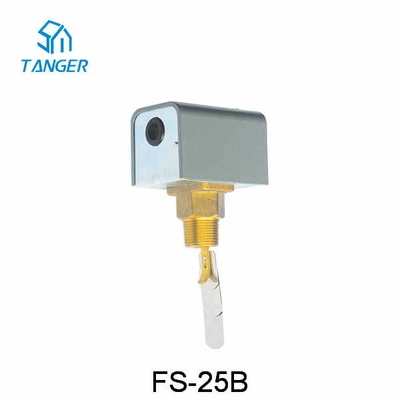

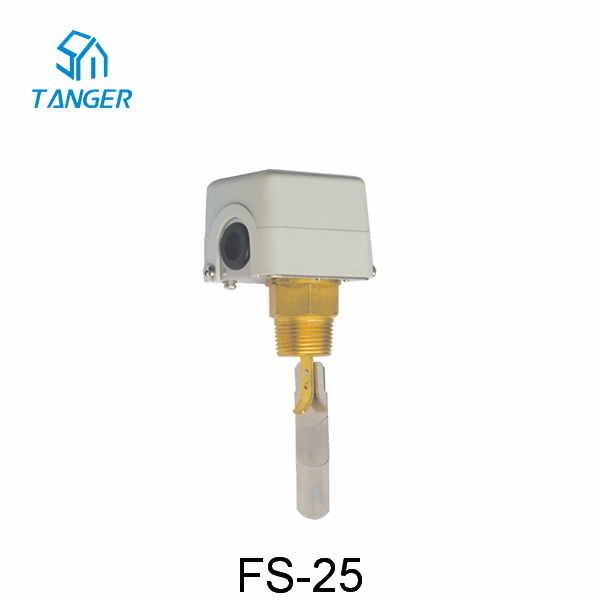

Flow Switch FS-25/FS-25A/FS-25B
Product Description:
Suitable for cooling, heating and adjust the liquid flow through piping, play the role of the switching signal, the switch can be adjusted based on the flow required. Flow switches are used for the display and monitoring of the flow of liquid and gaseous media. The instruments feature a high switching accuracy and functional safety, low switch hysteresis and continuous switch point setting by the user.
Applications:
1. Heating, cooling, air-conditioning and water treatment plants.
2. Pumps and dosing systems.
3. Operational controls to prevent system failures in the absence of supply of water or liquid.
Features:
1. Switch point repeatability of ±0.5 % for reliable switching.
2. High-quality bellows and microswitch for a service life of > 500,000 cycles.
3. Rigid paddles from stainless steel to withstand pressure surges and high medium temperatures.
Specifications:
| Model | FS-25 | FS-25A | FS-25B |
| Power Supply | 20(6)A/220~250VAC | 20(6)A/220~250VAC | 20(6)A/220~250VAC |
| Max. Admissible Static Pressure | 1MPa | 1MPa | 1MPa |
| Installation Size | 1'' | 1'' | 1'' |
| Largest Diameter | 6'' | 6'' | 6'' |
| Temperature of Liquid | -20~120℃ | -20~100℃ | -20~120℃ |
| Protection Class | IP42 | IP65 | IP42 |
