Product Details:
|
| Product Name: | Ball Valve Actuator | Application: | HVAC Controls |
|---|---|---|---|
| Thrust: | 100N | Running Time: | 15s |
| Protection: | IP42 | Wires: | 3-wire Dual Or Single Control |
| High Light: | underfloor heating actuators,floor heating actuator,underfloor heating valve actuators 3 Wire |
||

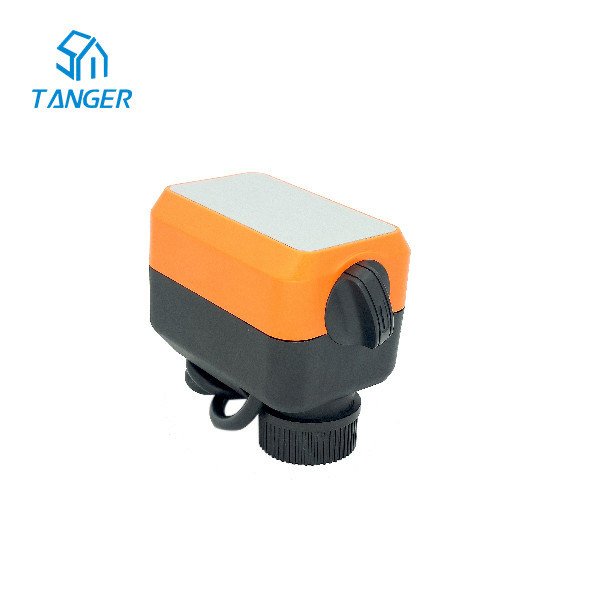

Manual and Automatic Integration Actuator for Floor Heating System
| Model number | ZBD230K01 |
| Function | 3-wire dual control or 3-wire single control |
| Power supply | 230VAC or 24VAC/DC |
| Power consumption | 3.5W |
| Frequency | 50/60Hz |
| Running time | 15s |
| Torque | 4Nm |
| Installation size | M33x1.5 |
| Protection level | IP42 |
| Thrust | 100N |
| Stroke | 5.5mm |
Wiring diagram
Type of vlaves to be used
| Installation type | Model number | Thread | Discharge coefficient Kvs | Value standard pressure MPa | Shut off pressure difference MPa | Medium temperature |
| Nut mounting | BV20-A3 | 3/4" | 7.24 | 1.0 | 0.1 | 5-100°C |
| BV20-ST1 | 3/4" | 9.30 | 1.0 | 0.1 | 5-100°C | |
| BV25-A2 | 1" | 8.70 | 1.0 | 0.1 | 5-100°C | |
| Vertical press way | VB19F20A | 3/4" | 9.78 | 1.0 | 0.1 | 5-100°C |
| VB19F20B | 3/4" | 9.78 | 1.0 | 0.1 | 5-100°C | |
| Snap-assembly | VB18F20B | 1/2" | 9.86 | 1.0 | 0.1 | 5-100°C |
| VB18F20A | 1/2" | 9.86 | 1.0 | 0.1 | 5-100°C | |
| U shaped push rod | ||||||
Installation notes
Before any service work on the final controlling device is carried out, it is essential to isolate the rotary actuator from the power supply (by unplugging the electrical cable if necessary). Any pumps in the part of the piping system concerned must also be switched off and the appropriate slide valves closed (allow all components to cool down first if necessary and allows to reduce the system pressure to ambient pressure level).
The system must not be returned to service until the ball valve and the rotary actuator have been correctly reassembled in accordance with the instructions and the pipeline has been refilled by professionally trained personnel.
