Product Details:
|
| Product Name: | Manual Reset Capillary Thermostat | Temperature Range: | 70~90℃/90~110℃ |
|---|---|---|---|
| Differential: | Manual Reset;Temperature Decrease ≥20℃, Reset | Electrical Rating: | 16(4)A/250VAC |
| Capillary Length: | 1000/1500mm | Warranty: | 1 Year |
| High Light: | Manual Reset Capillary Tubes Thermostats 16A 250V,capillary pipes thermostats 16A 250V,16A 250V Manual Reset Capillary Tubes Thermostats |
||

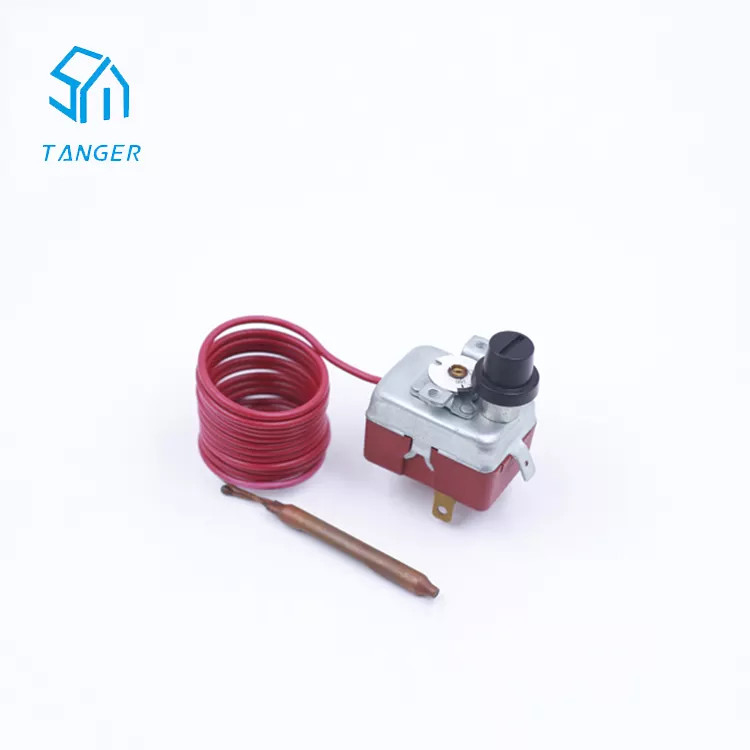

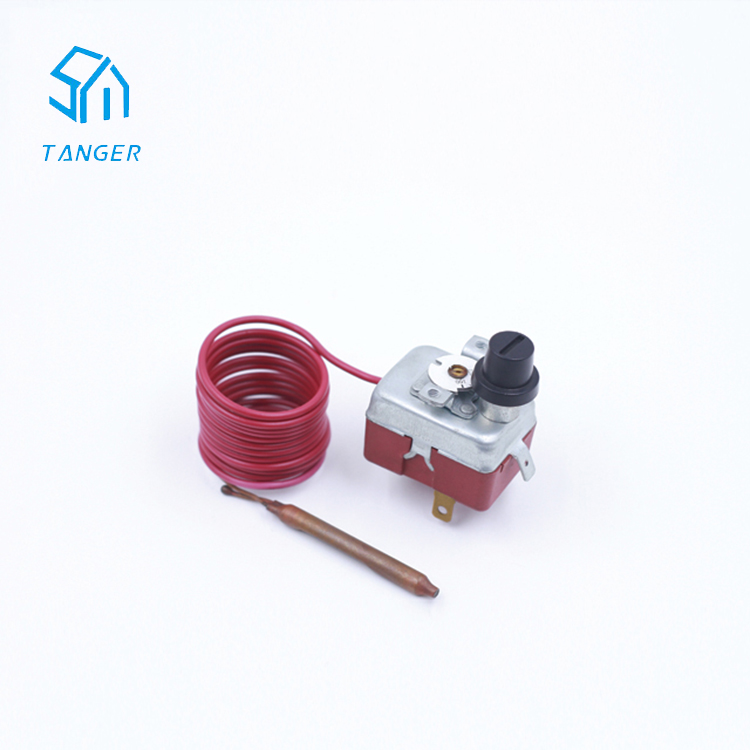

16(4)A 250V Manual Reset Capillary Tube Thermostat China
Capillary Thermostat GF series
Product Desciption:
GF series capillary thermostats are used for temperature control of washing machine, water heater, electric oven and other similar equipment with manual reset function and sensor leakage protection.Based on the set temperature, the sensor closes as the temperature rises and opens as the temperature falls.
Features:
1. Bulb failsafe safety.
2. Adjustable functional temperature with customizable external knob.
3. Easy cabling.
4. Customizable functional and safety capillaries length.
5. With manual reset.
Specifications:
| Model | GF series |
| Temperature Range | 70~90℃/90~110℃ |
| Differential | Manual reset;Temperature decrease ≥20℃, reset |
| Electrical Rating | 16(4)A/250VAC |
| Capillary Length | 1000/1500mm |
